    Access
    Floor

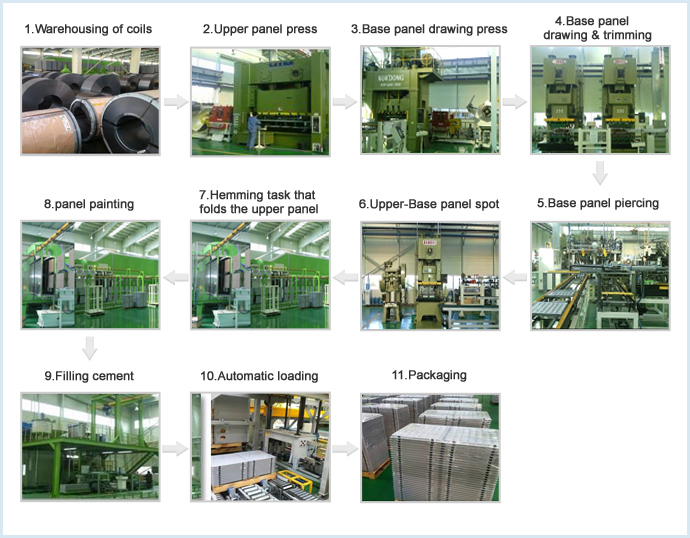

    Fabrication Specification
    Material Specification
    Download
    • The ideal working beam frame work absorbs noise and vibration that results in excellent ambulation.
    (we reserve the maximum load in Korea, when 1000Kgf is loaded, 4.0mm is deflected )
    • All materials, including cold rolled steel sheet and

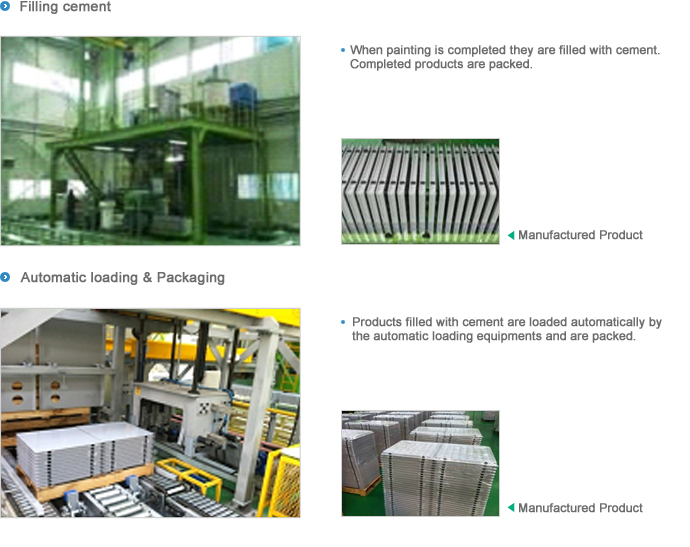

      cement are nonflammable.

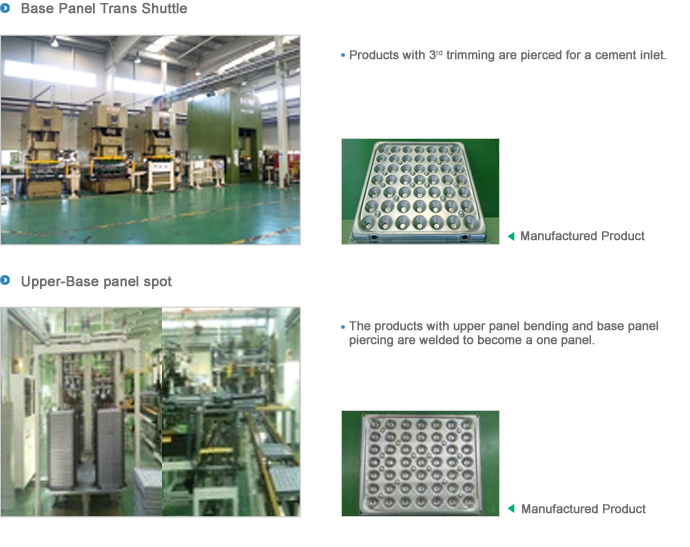

    • weight endurance is increased due to the multi welding
      combination structure of upper and base panel
    • Used POSCO cold rolled steel sheet, which is better in
      durability and corrosion resistance than hot rolled steel
      sheet.
    • KS Mark, Environment Indication Certification, Excellent
      quality product designated by Incheon
    • Performance record
      Samsung DSR-PROJECT, Busan Culture Contents
      Complex,
      Yeonggwang Nuclear Power Plant, Uljin New Clear Power
      Plant, Shin-Gori New Clear Power Plant,
      Sangamdong new MBC building, Data Processing
      Room, etc.

    Name
    ACCESS FLOOR
    Model
    A2-AF600C
    A2-AF600S
    Specifications
    STEEL CEMENT PANEL
    STEEL PANEL
    Weight
    14~16Kg
    9~10Kg
    Load

    4.0mm deflection when
    300Kgf is loaded (R type)

    deflection when 500Kgf is loaded (SP type)

    deflection when 1,000Kgf is loaded (Maximum load in Korea)
    TYPE

    finishing tiles All in one Type
    (STRINGER TYPE)

    Finishing Tile Separate type
    (CORNER LOCK TYPE)
    Finishing Materials

    All in one Type : Conductivity Tile, Deluxe Tile, HPL Tile

    Separate type : OA Tile, Carpet Tile
    Purpose
    Broadcasting center, Emergency Room, Data center, Computer Room, etc.
